一、安装jdk二、安装flume三、安装kafka1、zookeeper2、kafka四、启动测试步骤五、目录解释六、日志网络系统设计图七、大数据参考资料推举一、安装jdk -(版本：1.8.0_191)
1.下载：
https://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html
解压:tar -zxvf /jdk-8u191-linux-x64.tar.gz -C /home/ppgt/local/
2.修正 /etc/profile 增加：
export JAVA_HOME=/home/ppgt/local/jdk1.8.0_191
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$PATH:$JAVA_HOME/bin
3.检测：
java -version
二、安装flume -(版本：1.8.0)
1.下载：
wget http://mirrors.hust.edu.cn/apache/flume/1.8.0/apache-flume-1.8.0-bin.tar.gz
2.解压安装：
tar -zxvf apache-flume-1.8.0-bin.tar.gz -C /home/ppgt/local/
3.验证安装：
bin/flume-ng version
4.修正配置 conf/：
cp flume-env.sh.template flume-env.sh
vi flume-env.sh
//配置java路径：export JAVA_HOME=/usr/local/jdk/jdk1.8.0_191-amd64
5.添加连接kafka的配置文件:conf/flumetokafka.conf
#配置flume链接kafka
# 定义这个agent中各组件的名字
flume_kafka.sources = exec-sources
flume_kafka.sinks = kafka-sink
flume_kafka.channels = memory-channel
# Describe/configure the source
flume_kafka.sources.exec-sources.type = exec
flume_kafka.sources.exec-sources.command = tail -F /home/ppgt/tmpfile/testlogs/data.log
# Describe the sink
flume_kafka.sinks.kafka-sink.type = org.apache.flume.sink.kafka.KafkaSink
flume_kafka.sinks.kafka-sink.topic = topiclogs01
flume_kafka.sinks.kafka-sink.brokerList = localhost:9092
flume_kafka.sinks.kafka-sink.requiredAcks = 1
flume_kafka.sinks.kafka-sink.batchSize = 20
# Use a channel which buffers events in memory
flume_kafka.channels.memory-channel.type = memory
flume_kafka.channels.memory-channel.capacity = 1000
flume_kafka.channels.memory-channel.transactionCapacity = 100
# Bind the source and sink to the channel
flume_kafka.sources.exec-sources.channels = memory-channel
flume_kafka.sinks.kafka-sink.channel = memory-channel
三、安装kafka
1.安装依赖zookeeper -(版本：3.4.12)
1）下载：
wget http://mirror.bit.edu.cn/apache/zookeeper/stable/zookeeper-3.4.12.tar.gz
2）解压：
tar -zxvf zookeeper-3.4.12.tar.gz -C /home/ppgt/local/
3）修正数据存储目录：
conf/zoo.cfg
cp zoo_sample.cfg zoo.cfg
修正值：dataDir=/home/ppgt/kafka_zk_tmp/tmp/zookeeper
2.安装kafka -(版本：0.9.0.0)
1）下载：
wget https://archive.apache.org/dist/kafka/0.9.0.0/kafka_2.11-0.9.0.0.tgz
2）解压：
tar -zxvf kafka_2.11-0.9.0.0.tgz -C /home/ppgt/local/
3）修正配置文件：config/server.properties
a) zookeeper.connect=localhost:2181 #zk做事地址
b) host.name=localhost #主机名
c) log.dirs=/home/ppgt/kafka_zk_tmp/tmp/kafka-logs#kafka数据的存放地址
d) num.partitions=1 #分区数量
e) listeners=PLAINTEXT://:9092 #kafka监听端口
f) broker_id=0 #唯一标识id
四、启动测试步骤
1.启动zookeeper
bin/zkServer.sh start
2.启动flume
bin/flume-ng agent --conf conf --conf-file conf/flumetokafka.conf --name flume_kafka -Dflume.root.logger=INFO,console
3.启动kafka
//启动kafka做事
bin/kafka-server-start.sh /home/ppgt/local/kafka_2.11-0.9.0.0/config/server.properties
//创建一个topic
bin/kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 1 --topic topiclogs01
//创建一个kafka消费者
php /home/ppgt/www_test_ppgt_admin/syslogs_featrue_v1.0/script/cron/sysLogsConsumerRun.php
bin/kafka-console-consumer.sh --zookeeper localhost:2181 --topic topiclogs01 --from-beginning
//或者实行php消费者
//生产测试日志
echo '内容' exce >> /home/ppgt/tmpfile/testlogs/data.log
五、目录解释
1./home/ppgt/local/
conf/zoo.cfg #配置文件
conf/flumetokafka.conf #连接kafka的配置文件
config/server.properties #配置文件
conf/flume-env.sh#配置文件
jdk1.8.0_191 #jdk安装目录
apache-flume-1.8.0-bin/#flume安装目录
kafka_2.11-0.9.0.0/ #kafka安装目录
zookeeper-3.4.12/ #zookeeper安装目录
2./home/ppgt/kafka_zk_tmp/tmp/
zookeeper/ #zookeeper数据存储目录
kafka-logs/ #kafka数据的存放地址

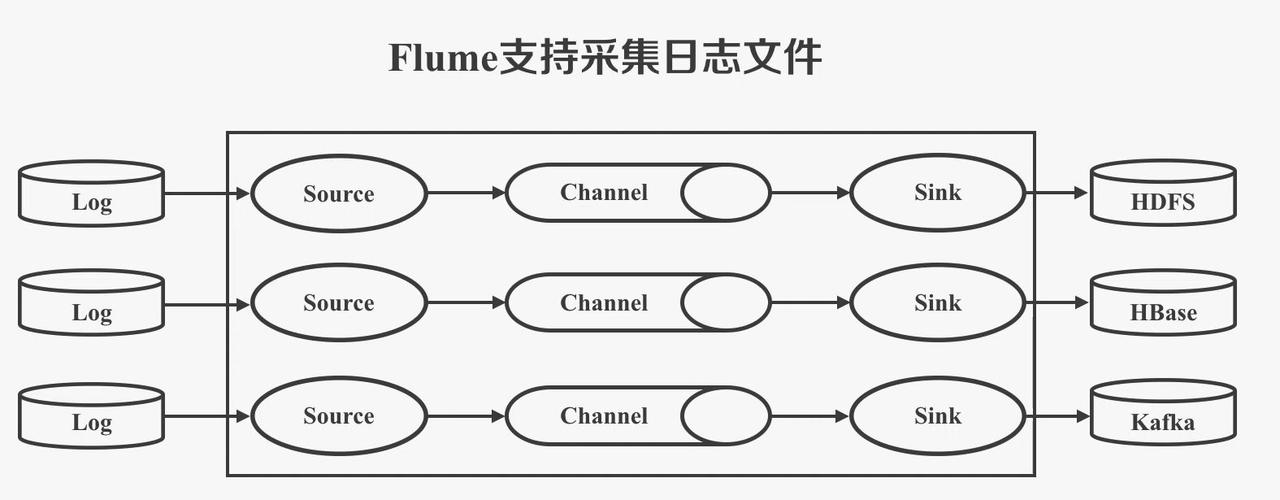

六、日志网络系统设计图
七、大数据资料文章推举
